Product Description

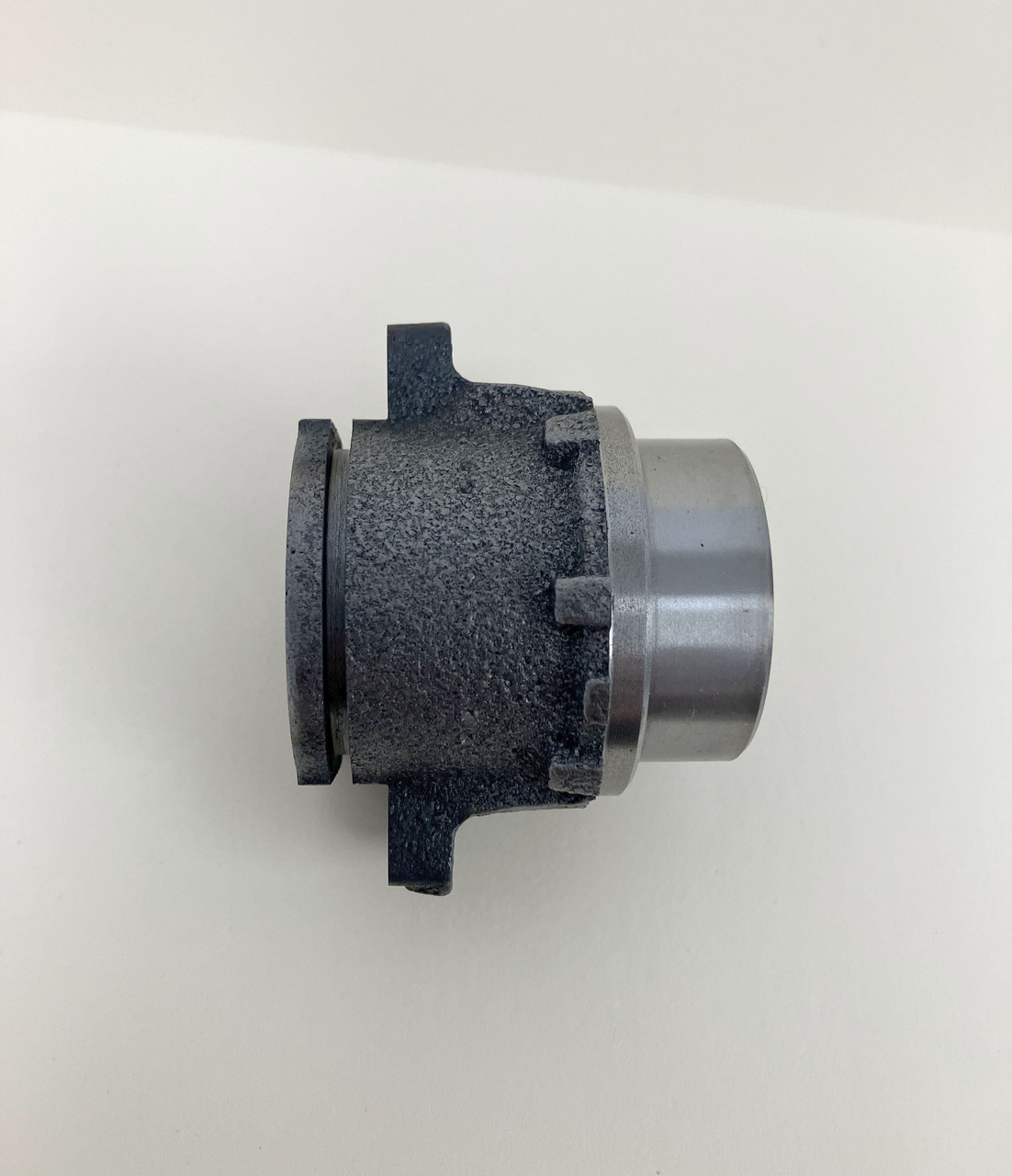

Clutch Release aka Throwout Bearing Sleeve Collar
The ONLY measurement that matters on these sleeves/collars is the measurement from the back side of the ears where it rests against the clutch fork, to the front surface where the back side of the release bearing touches the front side of the sleeve/collar

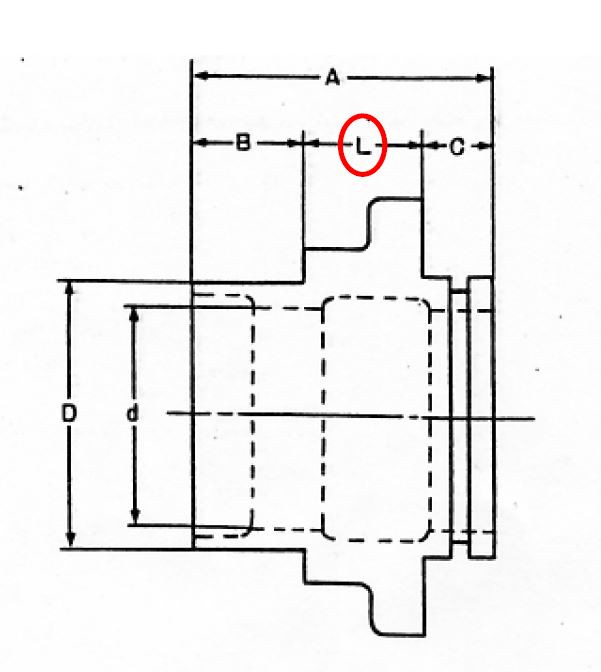

In some of the Datsun Competition / Nissan Motorsports catalogs, this dimension is shown as "Dimension L"
See diagram picture in this listing
Dimension L on this sleeve/collar is 28mm
If you are replacing the OE 225mm clutch on a 240Z or 260Z with the later type 225mm clutch, this is the sleeve/collar that you will need
This 28mm sleeve/collar was OE on the following vehicles:
1977-1980 810 L24
1981-1984 810/910/Maxima L24
1982-1983 S110 200SX Z22
1975-1978 S30 280Z 2-seater L28
1979-1983 S130 280ZX 2-seater non-turbo L28
1984-1986 Z31 300ZX turbo VG30ET
1975-1979 620 Pickup Truck L20B
1980-1983.0 720 Pickup Truck L20B Z22
1999-2004 D22 Frontier Pickup Truck VG30E non-supercharged
2000-2004 WD22 Xterra VG30E non-supercharged
1996-2000 R50 Pathfinder VG30E
If you are mixing & matching engines, transmissions, or clutch setups, we can help you determine the correct sleeve/collar and bearing that you will need
We also have the release bearing that goes with this sleeve/collar, as well as the sleeve-to-fork retainer clips, pivot balls, and pivot ball retainer clips for the forks
30501-21001 3050121001 30501-1C100 305011C100
30501N1600 30501-N1600 305011C104
