Product Description
Clutch Release aka Throwout Bearing Sleeve Collar
The ONLY measurement that matters on these sleeves/collars is the measurement from the back side of the ears where it rests against the clutch fork, to the front surface where the back side of the release bearing touches the front side of the sleeve/collar

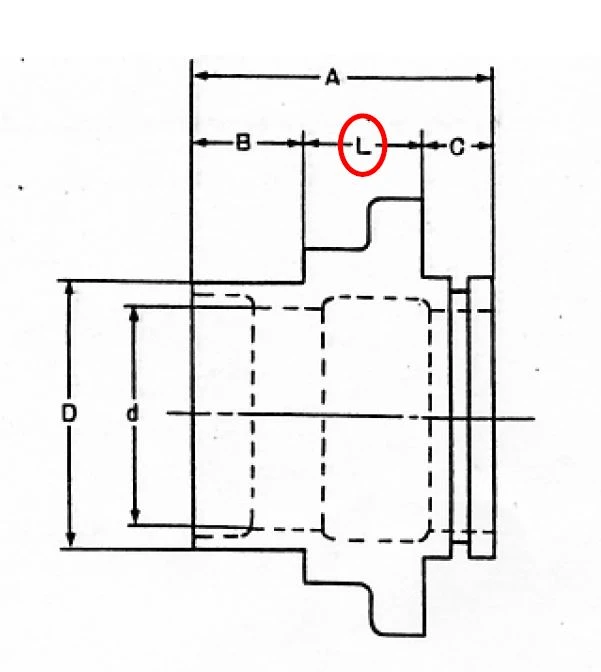

In some of the Datsun Competition / Nissan Motorsports catalogs, this dimension is shown as "Dimension L" See diagram picture in this listing
Dimension L on this sleeve/collar is 24mm
30501-K0404 FITS THESE VEHICLES:
200SX S10 1977-1979
200SX S12 1987-1988 V6
240SX S13 1989-1994
240SX S14 1995-1998
260Z 280Z S30 1975-1978 2+2
280ZX S130 1979-1983 2+2 NON-TURBO
280ZX S130 1982-1983 TURBO
300ZX Z31 1984-1989 NON-TURBO
510 A10 1978-1981
610 1974
710 1974-1977
PICKUP TRUCK 720 1983.5-1986 (NISSAN TAILGATE, VERTICAL TAIL LIGHTS)
HARDBODY PICKUP TRUCK D21 1986.5-1997 4-CYLINDER
FRONTIER PICKUP TRUCK D22 1998-2004 4-CYLINDER
FRONTIER PICKUP TRUCK D22 2001-2003 V6 SUPERCHARGED
PATHFINDER WD21 1987-1989 4-CYLINDER
XTERRA WD22 2000-2004 4-CYLINDER
XTERRA WD22 2002-2004 V6 SUPERCHARGED
If you do not see your vehicle in the above list, click HERE to see all of our sleeves/collars
If you are mixing & matching engines, transmissions, or clutch setups, we can help you determine the correct sleeve/collar and bearing that you will need
We also have the release bearing that goes with this sleeve/collar, as well as the sleeve-to-fork retainer clips, pivot balls, and pivot ball retainer clips for the forks
30501K0400 30501K0401 30501K0404
30501-K0461 30501K0461 30501-0H600
305010H600
